GPRS RS485 3000W Solar Pumping Inverter With MPPT AC Input

Shenzhen SunFiD New Energy Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

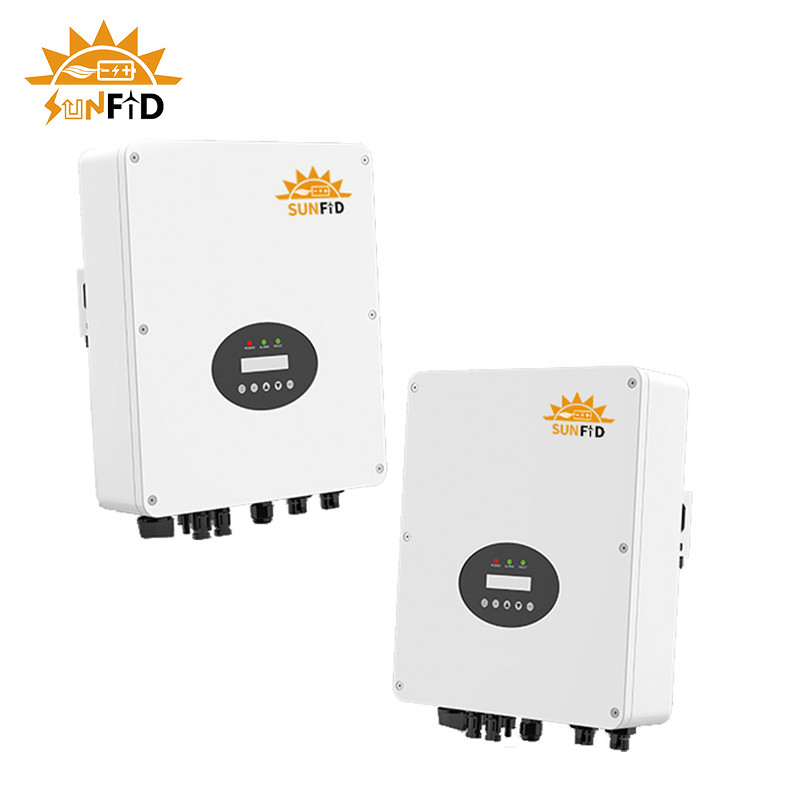

GPRS RS485 3000W Solar Pumping Inverter With MPPT AC Input

  • 1
  • 2

Brand Name : SUNFiD

Model Number : SFD-PI3KG

Certification : CE,FCC

Place of Origin : China

MOQ : 50pcs

Price : Negotiable Price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs

Delivery Time : 10-30 Days

Packaging Details : Carton

Product name : Solar Power Pumping Inverter with MPPT

Output Power : 3000W

Max.Output Current : 8A

Support 1 : AC & DC Input

Support 2 : GPRS-RS485 (optional)

Display : LCD+LED Display

Contact Now

3KW Solar Pumping Inverter With MPPT AC Input For Solar Power Pumping System



3KW AC Input Solar Pump Inverter Characters



1. Fully automatic and intelligent operation, safe and stable, to prevent dry pumping and overflow.

2. Interface visualization, LCD screen, and LED status indicator display.

3. The monitoring mode supports GPRSRS485 (optional).

4. Support mains/oil machine input, with various functions.

Solar Energy System Pumping InverterParameters:

Model SFD-PI3KG
Input(DC side)
Max DC Voltage(Vdc) 900Vdc
Start-up Voltage (Vdc) 250Vdc
Max Input Current (A) 12.5A
MPPT Operating Range(Vdc) 450Vdc-750Vdc
Number of Inputs 2
Input (AC side)
AC Input Voltage (Vac) 380Vac± 15%
AC Input Frequency (HZ) 50/60HZ± 5Hz
Output(AC side)
Rated Output Power(W) 3000W
Max Output Current (A) 8A
AC Output Voltage(Vac) 380Vac3PH
Output frequency (Hz) 0~50/60Hz
Other Parameters
Noise typical[dB(A)] <45dB(A)
Cooling Concept Natural cooling
Operating Temperature(℃) -25℃~+60℃
Protect Level IP65
Communication GPRSIRS485
Dimension(W*H*D mm) 410*346*160mm
Weight (Kg)REF 12Kg
